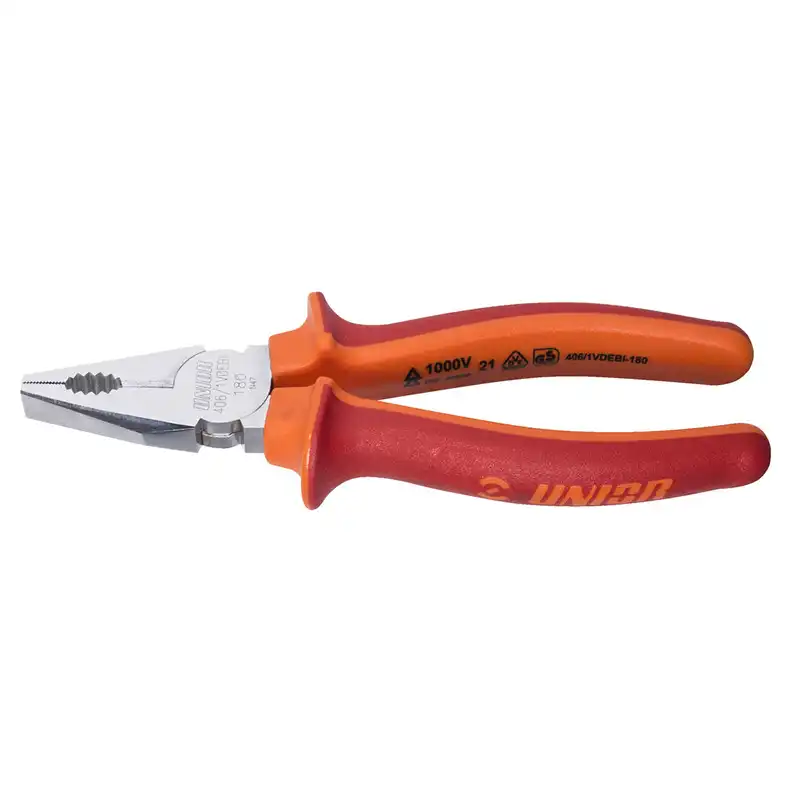

انبردست ضد برق 160 میلی متر یونیور UNIOR مدل 4061VDEBI-160
Profiles
Standards
DIN EN IEC 60900 (VDE 0682-201):2019-04; EN IEC 60900:2018
Product features
- material: premium plus carbon steel
- drop forged, entirely hardened and tempered
- cutting edges induction hardened
- head polished
- surface finish: chrome plated to standard ISO 1456:2009
- heavy duty double – component handles
- made according to standard ISO 5746 and EN IEC 60900
 |
 |
 |
 |
 |
 |
|
|---|---|---|---|---|---|---|
| 610421 | 160 | 24 | 35 | 9.5 | 224 | |
| 610422 | 180 | 27 | 38 | 10 | 274 | |
| 610423 | 200 | 29 | 41 | 10.5 | 344 | |
| 610424 | 220 | 32 | 47 | 11 | 424 |
|
|
 |
 |
|---|---|---|---|
| 610421 | 160 | 1,6 | 2,0 |
| 610422 | 180 | 1,8 | 2,5 |
| 610423 | 200 | 2,0 | 2,5 |
| 610424 | 220 | 2,0 | 3,0 |
Usage (pictures)
Safety tips
- Pliers should be oiled regularly. A drop of oil at the hinge will lengthen the tool life and assure easy operation.
- When cutting wire with pliers, you should always wear glasses or goggles.
- Don’t use pliers for cutting hardened wire, unless specifically manufactured for this purpose.
- Don’t expose pliers to excessive heat. This may ruin the tool.
- Don’t use pliers as a hammer.
- Don’t hammer on the handles. They may crack or break.
- Don’t extend the length of plier handles to secure greater leverage.
- Don’t use pliers on nuts or bolts. A wrench will do a better job and with less risk of damage to the fastener.
Questions & Answers
-
Are certified insulated tools made through a different procedure than non-certified insulated tools?The tools are made according to the same procedure.
-
Are insulated (VDE) tools considered as personal protective equipment (PPE)?According to EU regulations, VDE tools are not considered as PPE.
-
Is it possible to work with insulated pliers under electrical voltage?Yes, but only by professionals who follow safety requirements and use additional personal protective equipment.
-
Are the VDE tools only being sampled in series production?The high voltage test (at 10kV) is performed fully on each tool. Other tests are performed in accordance with the EN60900 standard.
-
Ultimate protection
Unior insulated VDE tools ensure ultimate protection even when used around live circuits with up to a 1000-volt potential. The utility of all tools is thoroughly verified by means of the impact strength, electrical, flame-retardancy, insulation adhesion and stamp tests, with each tool being tested individually.
-
High-quality steel
Insulated wrenches, pliers, shears, screwdrivers and other tools for working with electrical and other power installations are made of high-quality tool steel with added protection, and designed for simple and safe use.
-
VDE regulations
VDE insulated and tested according to the VDE regulations, Unior tools for work in electrically live environments meet the requirements of the internationally acknowledged European EN IEC 60900 standard.
