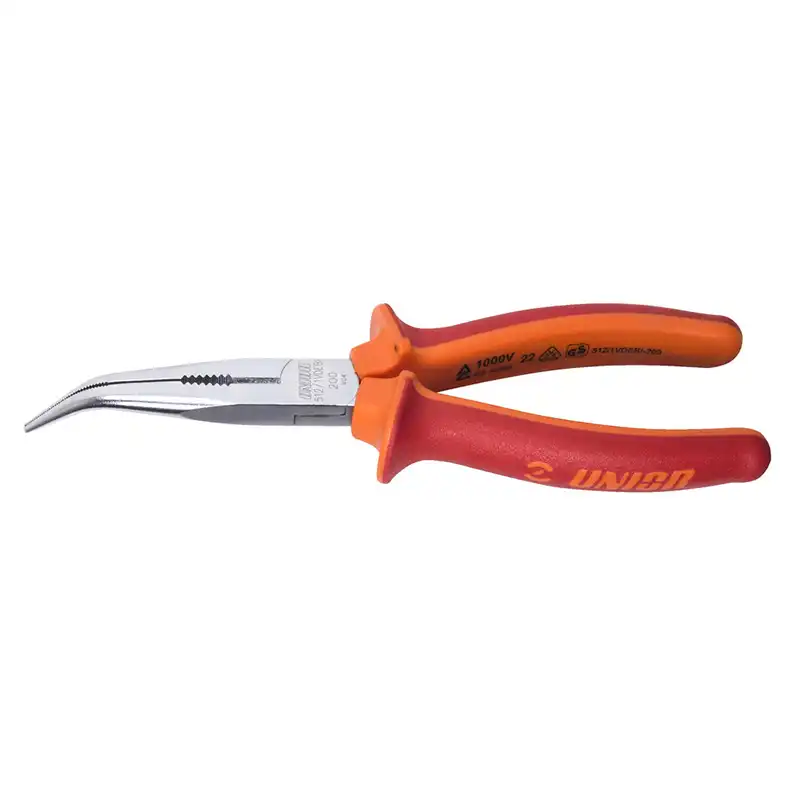

دم باریک سر کج ضد برق 200 میلی متر یونیور UNIOR مدل 512/1VDEBI-200

Profiles

Article made according to VDE standards 304897 50 Straight half round jaws Jaws form

Standards

DIN EN IEC 60900 (VDE 0682-201):2019-04; EN IEC 60900:2018

Product features

material: premium plus carbon steel

drop forged, entirely hardened and tempered

cutting edges induction hardened

head polished

surface finish: chrome plated to standard ISO 1456:2009

heavy duty double – component handles

made according to standard ISO 5745 and EN IEC 60900

Advantages:

the long bent jaws enable simple and precise clenching of nuts and screws

the strong jaws enable good grip

jaws bent to an angle of 45°

gripping surface serrated


610438		170	17	2.5	9	61	152
610439		200	17	2.5	9	77	204

cutting capacity (10N=1kg)


610438	170	1,6	2,0
610439	200	1,8	2,5

* Images of products are symbolic. All dimensions are in mm, and weight in grams. All listed dimensions may vary in tolerance.

Usage (pictures)

Questions & Answers

Are certified insulated tools made through a different procedure than non-certified insulated tools?
The tools are made according to the same procedure.
Are insulated (VDE) tools considered as personal protective equipment (PPE)?
According to EU regulations, VDE tools are not considered as PPE.
Is it possible to work with insulated pliers under electrical voltage?
Yes, but only by professionals who follow safety requirements and use additional personal protective equipment.
Are the VDE tools only being sampled in series production?
The high voltage test (at 10kV) is performed fully on each tool. Other tests are performed in accordance with the EN60900 standard.

Ultimate protection
Unior insulated VDE tools ensure ultimate protection even when used around live circuits with up to a 1000-volt potential. The utility of all tools is thoroughly verified by means of the impact strength, electrical, flame-retardancy, insulation adhesion and stamp tests, with each tool being tested individually.
High-quality steel
Insulated wrenches, pliers, shears, screwdrivers and other tools for working with electrical and other power installations are made of high-quality tool steel with added protection, and designed for simple and safe use.
VDE regulations
VDE insulated and tested according to the VDE regulations, Unior tools for work in electrically live environments meet the requirements of the internationally acknowledged European EN IEC 60900 standard.
